V-LITE interactive roof studio
Your canopy, from every angle.

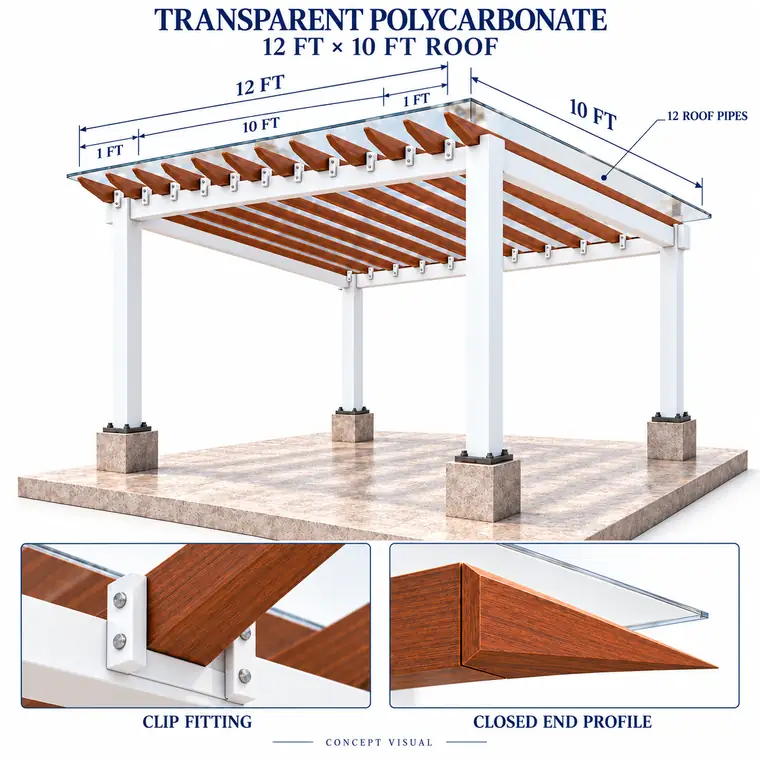

A 12 × 10 ft transparent polycarbonate canopy on a 10 × 10 ft post grid. Orbit a full 360°, walk the camera underneath the sheet, zoom into a clip fitting, and change the sheet tint, frame colour and timber tone as you go.
12 × 10 ftRoof coverage
10 × 10 ftPost centres
12Roof pipes
1 ftOverhang each end
What you are looking at
Built the way it would be fabricated.
01Transparent roof
A polycarbonate sheet spanning the full 12 × 10 ft, with a 1 ft overhang at each end to throw rain clear of the beam.
02Clip fittings
Each roof pipe is held to the perimeter beam by a pair of clips with stainless fixings. Use the clip close-up view to see the detail.
03Closed end profile
Roof pipes taper towards the ends and close off, so the section stays clean from below and nothing collects inside.
04Underside view
Press Go underneath to put the camera below the sheet — the view your client will actually live with.
