V-LITE® Polycarbonate Diamond Sheet
V-LITE Polycarbonate Diamond Sheet combines a crystalline textured finish with high impact strength for roofing, glazing and architectural applications. Available in 1.5–4 mm thicknesses and six standard colours.
Share your quantity, dimensions and preferred colour for a product-specific quote.

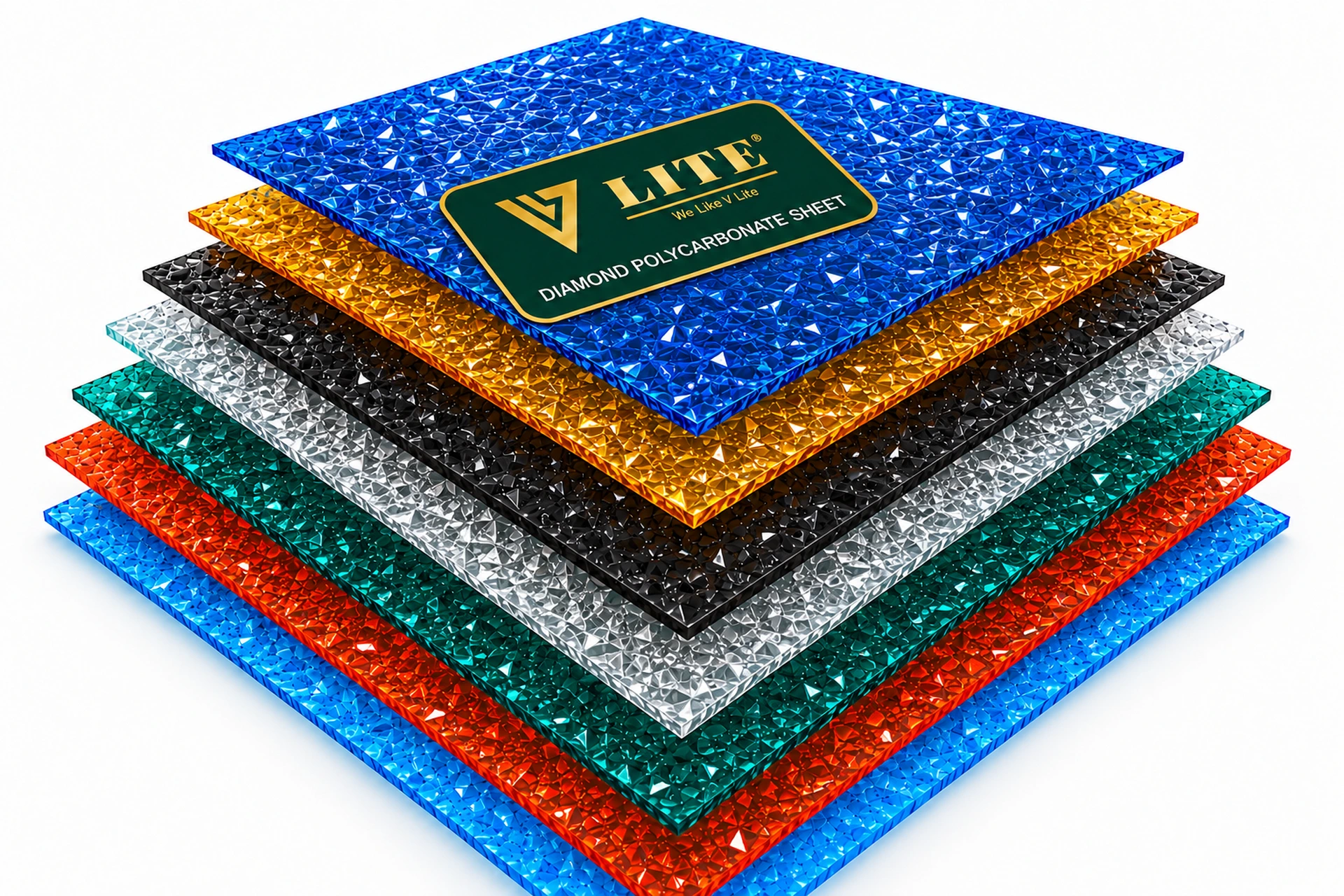

What a Polycarbonate Diamond Sheet is
The V-LITE® Polycarbonate Diamond Sheet is a solid polycarbonate sheet carrying a repeating diamond-shaped pattern across one face. The pattern is formed into the surface during manufacture; the sheet itself stays continuous material from one face to the other. Everything that separates it from a plain sheet happens at the surface, which is the single most useful thing to understand before specifying it.
That faceted surface is what produces the crystalline appearance the finish is chosen for. Where a polished face passes light through in more or less the direction it arrived, each small facet on a diamond face is angled differently, so light leaving the sheet is split across several directions at once. The panel reads as bright and lively rather than as a clear window, and the view through it becomes indistinct. How pronounced that effect looks depends on the colour specified, the angle you stand at and how strongly each side is lit.
It is worth separating this from two things it is often confused with. A diamond pattern is not a honeycomb or multiwall construction: those are hollow panels with two or more skins held apart by internal ribs, and they behave differently in weight, stiffness for a given depth, edge sealing and fixing. It is also not the same as our embossed finish, which uses a finer, softer texture over the whole face — the diamond pattern is larger, more geometric and more reflective, so it draws attention to itself where embossing tends to disappear into the background.
The finish is considered where a glazed or roofed element should read as decorative rather than transparent: covered walkways and entrance canopies, partitions and screens, feature glazing and ceilings, parking structures and selected roofing work. Before it is specified, five things need settling with us and with the project engineer: the thickness against the span and loads the panel will carry, the width that suits the support grid, the colour, the quantity, and how the listed standard length is supplied for your order.
What the diamond finish actually gives you
Each of these is either a property of the material or a consequence of the surface pattern. None of them is a tested performance figure — where a number is needed for a calculation, ask for the datasheet.
V-LITE Diamond Sheet Specifications
V-LITE Polycarbonate Diamond Sheet combines a distinctive crystalline surface with high impact strength for roofing, glazing and architectural applications. Designed to withstand weather, temperature changes and ageing, these sheets offer durable performance and a bright decorative finish. Each sheet is checked against quality parameters for consistent finish and reliability, with straightforward installation for suitably designed roofing and glazing systems.
Product Specifications
| Thickness (mm) | Standard Width (mm) | Standard Length (mm) | Standard Colours |
|---|---|---|---|
| 1.5–4 | 1220 / 1525 / 1830 / 2135 | 30,480 | Clear, Green, Light Blue, Dark Blue, Brown, Milky |
Screen colours are illustrative. Confirm your required dimensions, colour and finish when ordering.
Salient Features of V-LITE Polycarbonate Diamond Sheet
- High strength: A robust sheet for roofing, glazing and architectural designs.
- High impact strength: Durable polycarbonate construction for demanding applications.
- Waterproof material: Suitable for covered spaces when installed with correctly sealed joints.
- Weather and temperature resistance: Designed for exposure to changing outdoor conditions.
- Corrosion resistance: A practical material choice for domestic, industrial and commercial projects.
- Long-lasting shine: A crystalline finish that adds texture and visual interest.
- Precision engineered: Manufactured and quality checked for consistent performance.
- Durable coating: Supports a lasting surface finish.
Technical Characteristics Awaiting datasheet
Reproduced from the supplied specification sheet for reference. These are not verified specifications for this product and should not be used in a design calculation until the datasheet is issued.
| Characteristic | Unit | Data |
|---|---|---|
| Impact Strength | J/m | 850 |
| Light Transmission | % | 88x1 † |
| Specific Gravity | g/cm² † | 1.2 |
| Coefficient of Thermal Expansion | mm / m °C | 0.065 |
| Service Temperature | °C | −40 to +120 |
| Heat Conductivity | W/m²°C † | 2.3–3.9 |
| Tensile Strength | N/mm † | >60 |
| Flexural Strength | N/mm² | 100 |
| Modulus of Elasticity | MPa | 2400 |
| Tensile Stress at Break | MPa | >65 |
| Elongation at Break | % | 100 |
| Specific Heat | kJ/(kg·K) | 1.17 |
| Heat Deflection Temperature | °C | 140 |
| Effect of Soundproof | dB | −29 × 2 † |
Technical data reproduced from the supplied V-LITE specification sheet. † These entries retain the source notation; confirm the value, unit and test method with the technical team before specification.
Other Specifications & Test References
These are not this product’s figures. The supplied PC Diamond Sheet test note reports light transmission across thicknesses of 2–20 mm (quoted there as 89% down to 50%). The product on this page is supplied in 1.5–4 mm, so those readings do not describe it and must not be used as its light transmission. Request the datasheet for the grade quoted.
The source also mentions a 6 mm PC Diamond Sheet test result without a separate result table or test conditions. Contact the V-LITE team for the applicable test report.
Confirm the delivery schedule for your quantity, specification and destination when placing your order.
Six published colours
Pick a colour to update the surface preview and the enquiry summary. Every selection you make here is carried into the enquiry form at the bottom of this page.
- Product
- Diamond Sheet · VL-PC-DM
- Colour
- Clear
- Thickness
- 1.5 mm
- Width
- 1220 mm
Screen colours are illustrative and vary between displays. Ask for a physical sample before committing to a colour, and view it in the light the panel will actually sit in. The pattern shown here is a drawn representation of the diamond surface, not a photograph.
Commercial options, and what is still to be confirmed
These are deliberately kept apart. The first table is what we supply and can be ordered against. The second holds figures taken from the supplied specification sheet whose notation, units or test basis have not yet been confirmed — they are reproduced for reference and should not be used in a design calculation until the datasheet is issued.
Group 1 · Commercial options Confirmed
| Product | V-LITE® Polycarbonate Diamond Sheet |
|---|---|
| Product code | VL-PC-DM |
| Construction | Solid polycarbonate sheet, not hollow |
| Surface | Diamond pattern formed into one face |
| Thickness options | 1.5 mm, 2 mm, 3 mm and 4 mm |
| Standard widths | 1220 mm, 1525 mm, 1830 mm and 2135 mm |
| Listed standard length | 30,480 mm (100 ft) Format to confirm |
| Colours | Clear, Green, Light Blue, Dark Blue, Brown and Milky |
| Manufacturer | Adinath Poly Plast Pvt. Ltd., Indore, Madhya Pradesh |
The listed standard length of 30,480 mm (100 ft) is reproduced from the published product data. Whether that length is supplied as a continuous run, cut to your required length, or in another format is being confirmed with the plant — please ask us for your order rather than assuming a panel size. Custom sizes outside the published widths are not offered unless we confirm them for your project.
Group 2 · Performance data Awaiting datasheet
No tested performance figure for this product is asserted anywhere on this page. Light transmission, impact behaviour, fire classification, permissible span, load capacity, minimum bend radius and warranty are not published here, because the figures we hold are not yet in a form that can be relied on for a specification:
- The technical table further down this page retains the notation of the supplied specification sheet. Several entries carry units or symbols that need confirming before they mean anything in a calculation — they are marked in that table.
- The supplied test note reports light transmission across a 2–20 mm thickness range. This product is sold in 1.5 mm to 4 mm, so those figures do not describe what you would be buying and are not reproduced as this product's transmission.
- Company management-system certifications are held at company level. They describe how the plant is run; they are not a test approval for this product.
Group 3 · What your engineer still decides
Thickness against span, support spacing, fixing centres, hole sizing for thermal movement, slope and drainage, and the sealing detail at every joint and upstand are project engineering. Nothing on this page substitutes for that, and no structural approval is claimed. Send us the structure and we will tell you what we can supply against it.
Applications of Polycarbonate Diamond Sheet
V-LITE Diamond Sheets offer a textured glazing and roofing option for a wide range of projects:
- Parking structures and covered parking areas
- Architectural and structural design projects
- Safety glazing
- Swimming pool covers
- Covered walkways
- North light glazing
- Industrial cladding
- Commercial and residential roofing
- Other project-specific glazing and cover applications
Suitable For
Domestic uses · Industrial uses · Agricultural uses · Commercial uses · Engineers and architects
Project Examples & Application Visualisations
Explore Diamond Sheet in parking canopies, entrance covers and walkways. These are application visualisations; confirm the grade and structural design for your project.

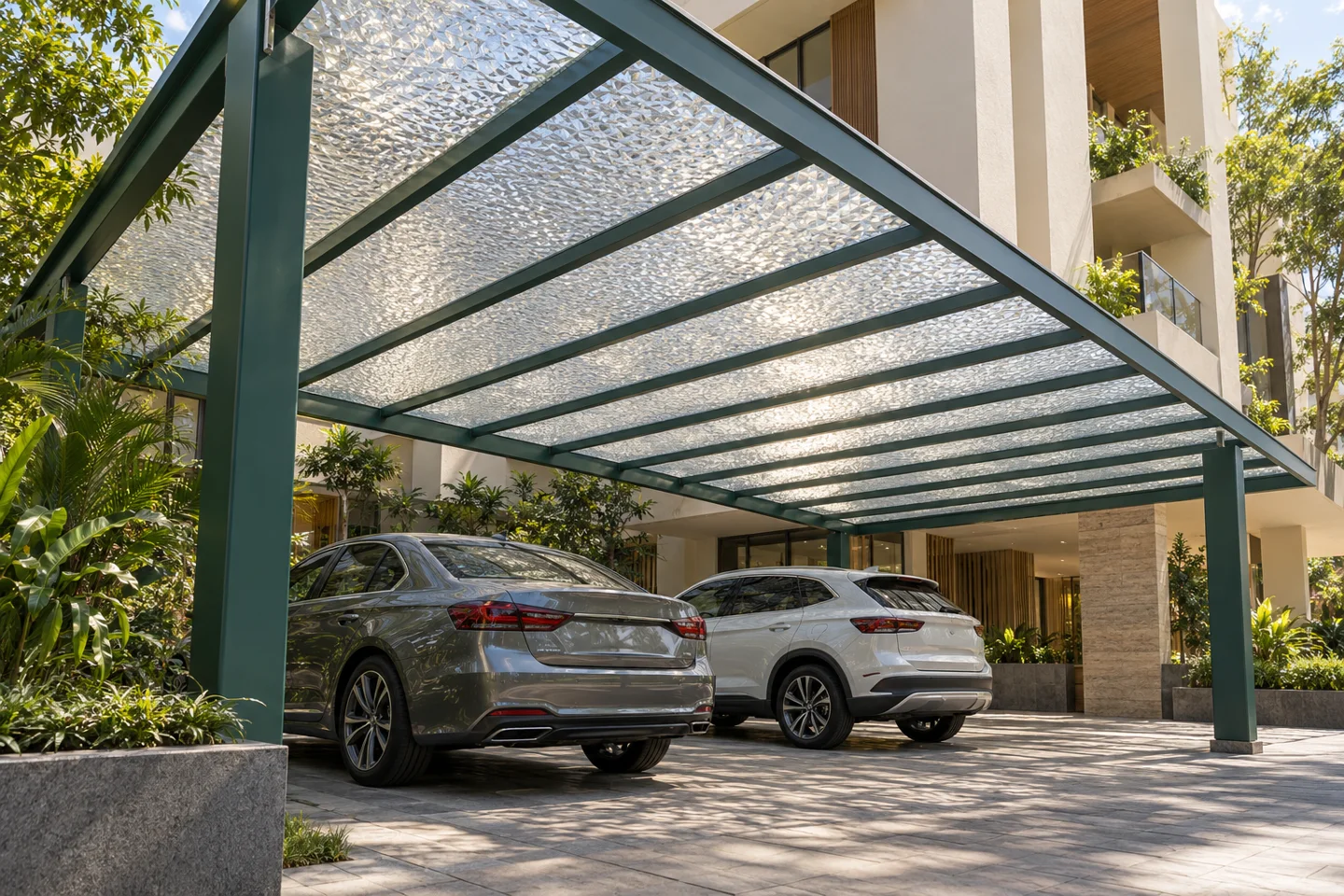

Parking canopies
Diamond-textured panels bring daylight to a covered parking concept. Final spans, loads and fixings require project engineering.

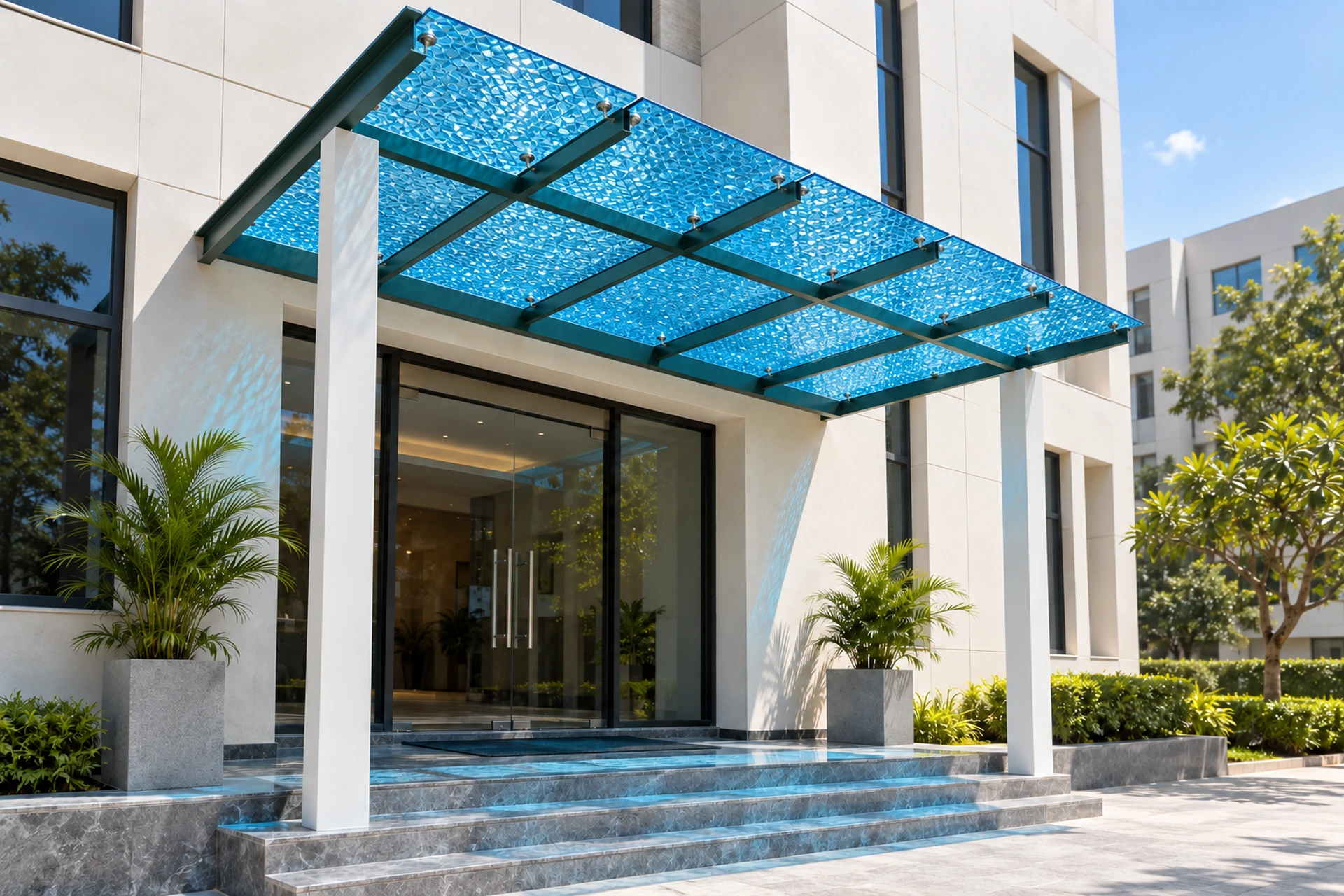

Entrance canopies
A blue-tinted concept for a sheltered, daylight-filled entrance.

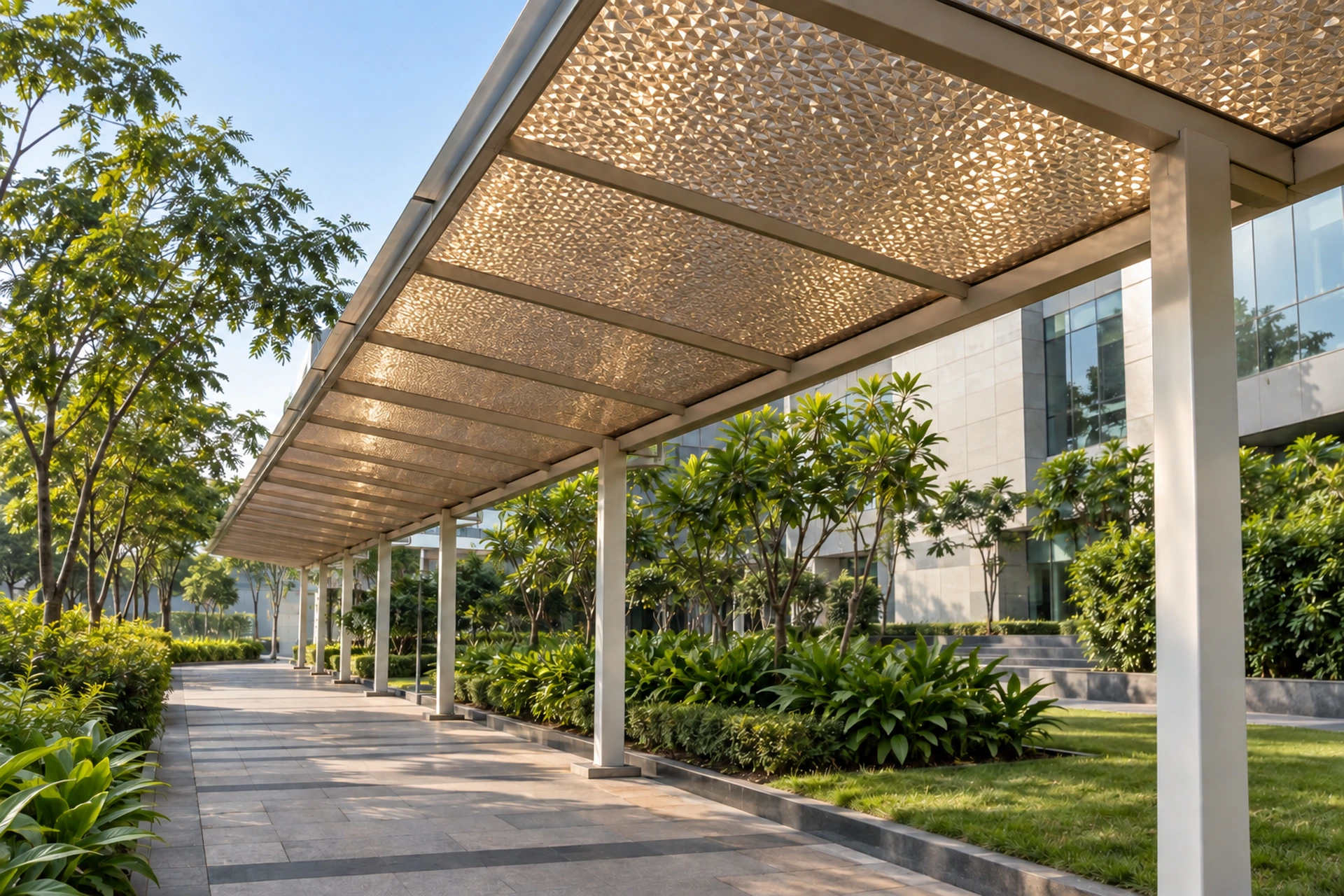

Covered walkways
Bronze-toned panels create a warm architectural rhythm along a garden path.
Final suitability, sheet thickness and support details depend on the application. Discuss your project requirements with the V-LITE team.
Where it is specified, and what to check first
For each use: the project need, what the diamond finish contributes, and the specification point that still has to be settled. The third column is the one that gets skipped, and it is the one that causes problems on site.
| Application | The project need | What the finish contributes | Still to confirm |
|---|---|---|---|
| Entrance canopies | A sheltered entrance that still reads as designed rather than purely functional. | The faceted surface catches light from several angles, so the canopy looks alive from the approach instead of flat. | Thickness against span and wind load, fixing centres with room for movement, and the sealing detail where the canopy meets the building. |
| Covered walkways | A daylit route between buildings that does not feel like a tunnel. | Light is broken up along the length of the run, which softens the glare of a low sun through clear sheet. | The support grid against the standard widths, end and edge details, and the exposure the run will see. |

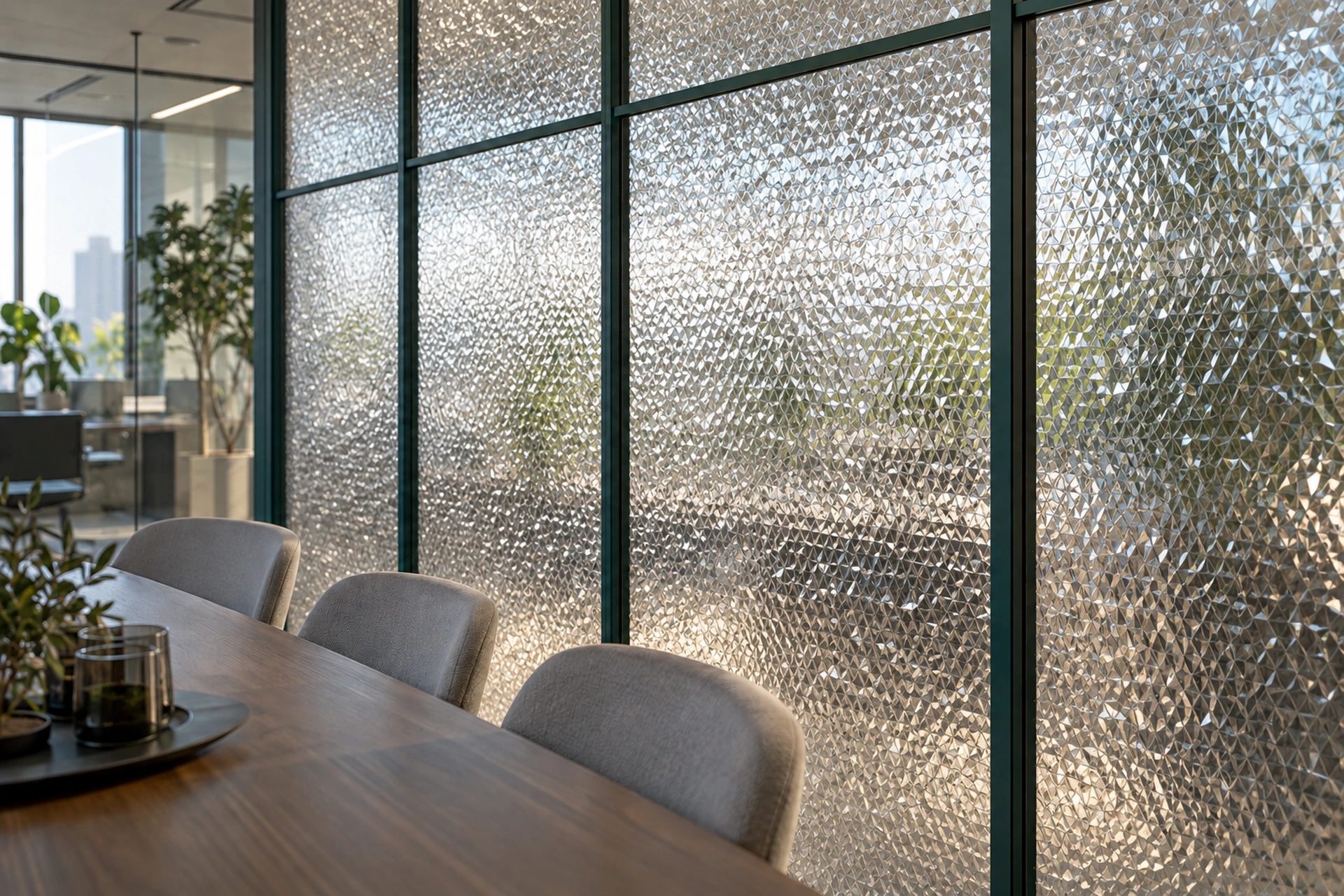

| Partitions and screens | Light shared between two spaces without a view straight through. | Shapes behind the panel read as indistinct outlines, so no blinds or applied film are needed. | Whether the degree of screening is enough at the real viewing distance and lighting — assess a sample in place. |

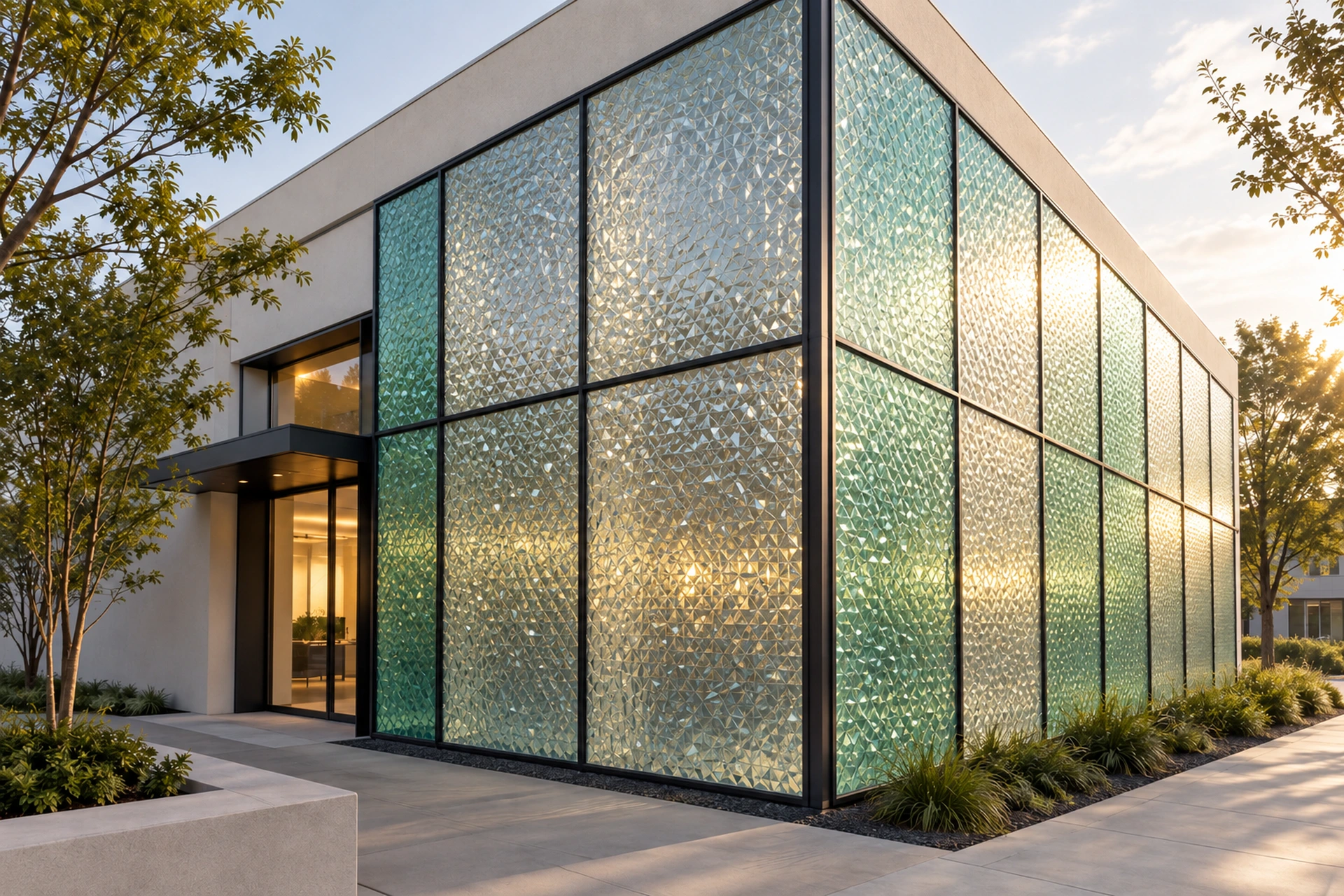

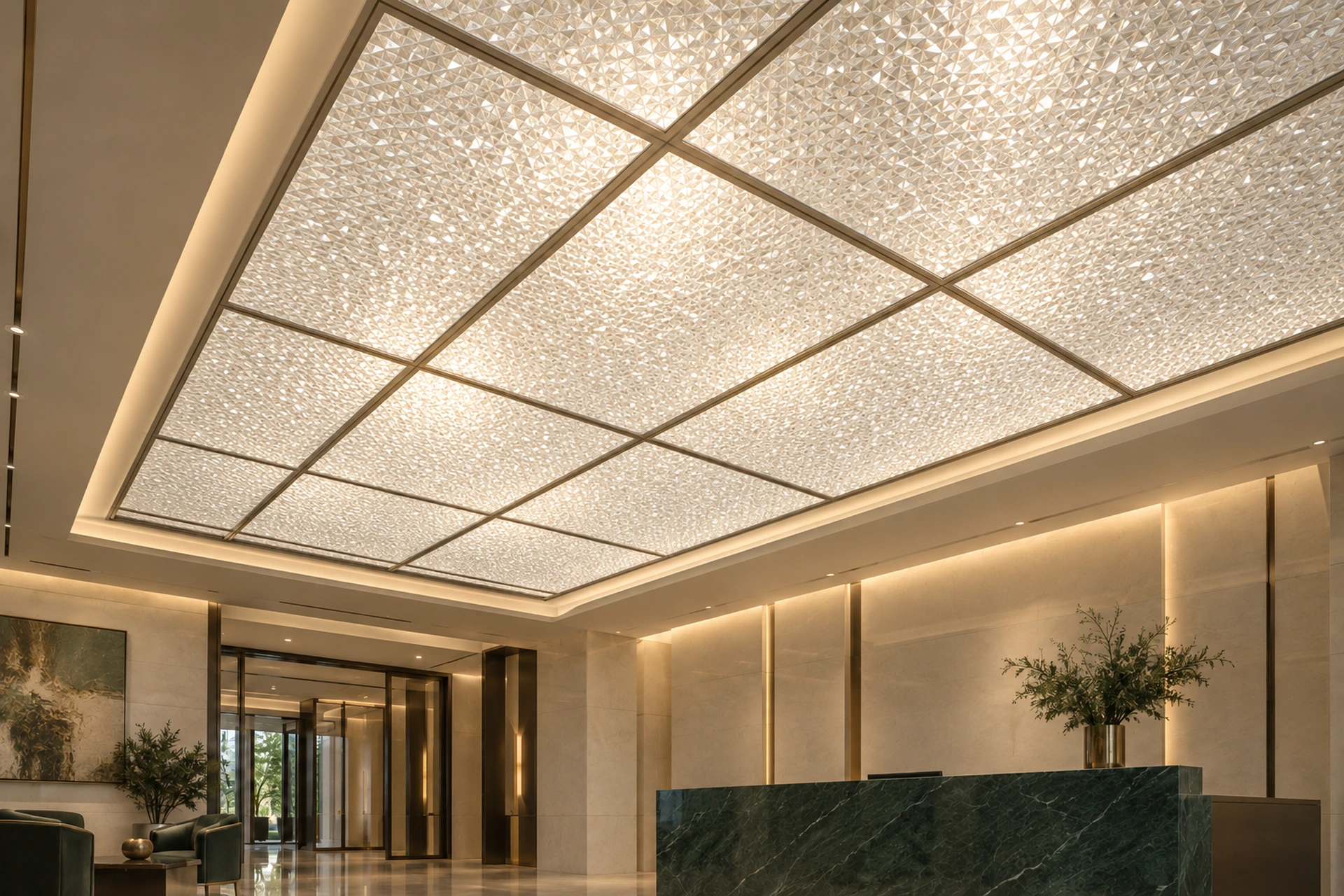

| Feature glazing and ceilings | A surface that carries some visual interest in its own right. | The diamond pattern gives depth and movement that a plain panel cannot, which is the main reason this finish gets chosen. | Colour consistency across the quantity ordered, the fixing system, and how the panel is accessed for cleaning. |
| Parking structures | Cover and daylight over parking decks and approach ramps. | A decorative face lifts a utilitarian structure without adding a separate cladding layer. | Spans, loads and exposure for the actual structure, plus drainage and the fixing detail — all project engineering. |
| Selected roofing work | A roofed element where appearance matters as much as cover. | Breaks up direct light arriving through the roof and gives the soffit a brighter, more even look from below. | This is the application needing most care: spans, wind and live loads, slope, drainage, laps and seals all decide both the thickness and whether this product suits the job at all. |
This is where the finish is commonly considered, not a statement that it suits every roof, canopy or safety-glazing requirement. Final suitability depends on the product grade and on project engineering for the actual structure. Where a profiled roof sheet is what the job needs, see the Corrugated Profile Sheet, or browse applications across the V-LITE range.
Diamond, Embossed or Smooth Solid
All three are solid polycarbonate sheets. The difference is entirely at the surface, and it changes how the panel looks and how much you can see through it — not the bulk of the sheet. This is a qualitative comparison; no performance figures are implied.
| Diamond | Embossed | Smooth Solid | |
|---|---|---|---|
| Surface | Repeating diamond facets, geometric and pronounced | Fine, even texture across the whole face | Polished and flat |
| How it reads | Crystalline and reflective; the surface draws the eye | Softly textured; the surface recedes | Reads as a window |
| View through it | Broken up into indistinct shapes | Softened outlines | Clear |
| Usually chosen for | Decorative glazing, ceilings, canopies and screens where the panel should be seen | Daylight that should arrive evenly spread without drawing attention | A clear view, or where the glazing should disappear |
| Published thicknesses | 1.5, 2, 3 and 4 mm | See the Embossed product page | See the Solid Compact product page |
| Construction | Solid | Solid | Solid |
There is no best product among the three — they answer different briefs. Compare them directly on the V-LITE Polycarbonate Embossed Sheet and Solid Compact Sheet pages, each of which lists its own published options. If a specification calls for a hollow multiwall or honeycomb panel, none of these three is that product — see the Multiwall Sheet instead. Tell us what the panel has to do and we will set the options side by side rather than quoting only what was asked for.
See Diamond Sheet in 3D.
Rotate the faceted sheet, explore colours and preview it on an application structure.
The 3D view is illustrative. Sheet sizes in this preview represent example cut panels; standard supply dimensions are listed above.
Your sheet. Your space.
Explore 10 polycarbonate profiles on real 3D structures. Change the sheet, colour or application and see your selection take shape.
Product type
Colour
Clear#EFF6F5Requested thickness
Sheet size
Structure / application
Industrial & CommercialQuantity
- Product
- Diamond Sheet
- Colour
- Clear
- Thickness
- 1.5 – 4 mm
- Size
- 1220 – 2135 mm wide
- Light transmission
- Confirm by grade
- Application
- Illustrative preview
Inquiry list: 0 items
Nothing added yet. Configure a sheet and press “Add to inquiry”.
Packaging, freight and order support
You are buying directly from the manufacturer, not through a marketplace. There is no escrow, no platform payment guarantee, no automatic refund mechanism and no platform-managed logistics — anything agreed is agreed directly with Adinath Poly Plast Pvt. Ltd., in writing, before production starts.
Packaging and handling
Ask us to confirm how your order will be packed and protected before dispatch, since that depends on the thickness, the width and how the standard length is supplied for your quantity. On site, keep sheets flat, clear of the ground, under cover and out of standing water, and lift rather than drag them — grit trapped between two faces is the commonest cause of surface marking before a panel is even installed. A faceted surface shows handling marks differently from a flat one, so it is worth briefing the site team.
Freight and delivery
Freight is quoted per order rather than published as a rate, because it depends on the destination, the quantity, the dimensions and the space the load occupies, and on whether we arrange transport or you send your own vehicle. Keep production lead time, dispatch from our plant in Indore, and transit time to your site as three separate things when planning a programme, and ask us to confirm all three for your order. The 7–15 day figure published on this page is an indicative schedule, not a delivery guarantee.
Payment and order confirmation
Payment terms, the accepted methods and any advance are agreed in writing on the quotation and order confirmation for each order. Treat that written confirmation, not this page, as the record of what has been agreed. No standing payment schedule is published here, and no payment methods are listed that we have not confirmed we accept.
Inspection and documentation
Ask at the enquiry stage what documentation can be issued with your order and whether an inspection can be arranged for it. We would rather confirm what is genuinely available for your specification than advertise a service that may not apply to every order.
After-sales
If something arrives damaged or does not match what was confirmed, contact us with the order reference, photographs and the batch reference from the dispatch, before the material is installed. Reporting early makes it far easier to establish what happened and put it right.
Choose the sheet
Application, colour, thickness and dimensions.
Confirm the details
Quantity, written quotation and packing requirements.
Plan the delivery
Confirm production, dispatch and transit separately.
Questions buyers ask about Diamond Sheet
Twelve questions, answered first and qualified second. The answers are plain HTML, so they stay readable without the 3D viewer.
What is a Polycarbonate Diamond Sheet?
A solid polycarbonate sheet with a repeating diamond-shaped pattern formed into one face during manufacture. The sheet is continuous material throughout; the pattern is a surface finish. Those facets split the light passing through, which gives the panel its crystalline look and breaks up the view through it.
How does it differ from the Embossed Sheet?
Both are solid sheets and the difference is the surface. The diamond pattern is larger, geometric and more reflective, so the panel draws attention to itself. The embossed finish is a finer, softer texture that spreads light evenly and tends to recede visually. Choose diamond when the panel should be seen, embossed when the daylight matters more than the surface. See the Embossed Sheet for its own published options.
Is the diamond effect a surface pattern or an internal structure?
A surface pattern. The sheet is solid from face to face with nothing hollowed out inside it. Honeycomb and multiwall panels are the hollow products — two or more skins held apart by internal ribs — and they behave differently in weight, stiffness, edge sealing and fixing. If your specification calls for one of those, see the Multiwall Sheet.
Which thicknesses are available?
1.5 mm, 2 mm, 3 mm and 4 mm. Which suits your project depends on the span between supports and the loads the panel has to carry, so treat it as an engineering decision rather than a preference. Send us the support layout and we will advise, and have the final selection confirmed by the project engineer.
Which colours and widths are available?
6 colours — Clear, Green, Light Blue, Dark Blue, Brown and Milky — in 4 standard widths: 1220 mm, 1525 mm, 1830 mm and 2135 mm. The listed standard length is 30,480 mm (100 ft); ask us how that length is supplied for your order before planning panel sizes. Colour swatches on screen are illustrative, so request a physical sample if the colour matters to the design.
Does it provide privacy?
It gives visual screening by degree, not absolute privacy. Shapes behind the panel read as indistinct, and how much is obscured depends on the colour, the viewing distance, the angle and which side is better lit — a lit room behind the panel at night shows more than the same room by day. Where privacy is a defined requirement, assess a physical sample in conditions close to the real ones.
What should buyers confirm for outdoor use?
Four things. The exposure the panel will see and from which side; the thickness against the span, wind and live loads for that structure; the fixing detail, including holes sized so the sheet can expand and contract; and the drainage and sealing at every joint and upstand. Ask us for the installation guidance applying to the grade quoted, and have the structural side confirmed by your engineer.
Can it be used for roofing and partitions?
Partitions are a straightforward fit — light is shared without a clear view through, and no blinds or film are needed. Roofing needs more care: spans, wind and live loads, slope, drainage, laps and seals vary enormously between projects and decide both the thickness and whether this product suits the job at all. Send us the structure and we will say honestly whether it does.
What affects the price?
Mainly the thickness, the colour, the width, the total quantity and how the length is supplied for your order. Whether material is produced to order or drawn from available stock affects both price and timing, and freight is quoted separately against your destination. No rate card is published for this product — send the specification and quantity and we will quote it.
How should it be maintained?
Rinse with clean water first to float grit off the surface, then wash gently with a mild soap solution and a soft cloth or sponge, and rinse again. Avoid abrasive pads, scouring powders and strong solvents, and never dry-wipe a dusty sheet — dragging grit across the face causes most of the surface damage panels pick up in service. A faceted surface holds a little more dust in its valleys than a flat one, so plan on rinsing it somewhat more often.
What information is needed for a quotation?
The application and where the panel sits; the thickness, or the span for us to work from; the colour; the width and the length you need; the quantity with its unit; and your delivery city and postal code. Drawings or photographs help more than a written description. The enquiry form on this page carries your colour, thickness and width selections through automatically.
How can buyers confirm delivery timing?
Ask us for your specific order. Production lead time, dispatch from Indore and transit to your site are three different things, and the right answer depends on the quantity, the specification, whether the material is produced or drawn from stock, and the destination. The 7–15 day figure published on this page is indicative; we will confirm a schedule you can plan against when the order is placed.
Made at our own plant in Indore
V-LITE® is manufactured by Adinath Poly Plast Pvt. Ltd., established in 2009 in Indore, Madhya Pradesh. Extrusion, cutting, masking and packing happen under one roof, and every dispatch carries a batch reference so material on site can be traced back to its production run.
The company holds ISO 9001, ISO 14001 and ISO 45001 management-system certifications and a ZED Gold rating from the MSME ministry. These describe how the plant is run — its quality, environmental and safety systems. They are not a test approval for this or any individual product, and nothing on this page should be read as one. Product-level test data is issued on the technical datasheet for the grade quoted.
